AVK solution to reduce water loss in Abu Dhabi

There is a shortage of water in Abu Dhabi and clean water is a huge challenge. With a strong focus on making water supply more efficient a larger collective effort reduced the water loss from 45% to 10% in some major areas of the Al Ain City.

The citizens of Abu Dhabi rely on desalinated water and have invested huge amounts making sure that there is enough desalinated water to provide water for up to 90 days in case of drought or other emergencies. Desalinated water is very expensive; therefore, focus on reducing water loss is an absolute necessity which in some areas previously was as high as 45%.

This meant new technologieswere introduced to reduce the water loss

An advanced management system was required to reduce water loss to provides water utilities with an overview and full control as well as real time access to information and key performance indicators, day and night.The municipality of Abu Dhabi engaged NIRAS to present a masterplan and implement the new technologies to get control of their non-revenue water.

District Meter Areas

First, the Al Ain City was sectioned into District Meter Areas (DMA’s) and a leakage management system was implemented.To be able to close off a certain section when repairing leakages, a shut-off valve had to be installed at each entrance to a section.

The importance of reliable and leak tight valves

When choosing valves for a DMA, quality is a key factor. It is paramount that all valves installed are 100% reliable and leak tight as it is otherwise very hard to identify leaks inside the DMA. A method to locate leaks is by pressurising parts of the DMA and then measure if the pressure holds or drops. A pressure drop indicates a leak and therefore it is important to be certain that it is not the valves separating the sections that leak and thereby cause the decrease in pressure.

One of Abu Dhabi's engineers expressed it this way: “High quality, functional and operational valves are the backbone of any water distribution system”.

The choice fell on AVK gate valves series 06. Besides sectioning the city into District Meter Areas and installing AVK valves, metering equipment was installed at the pumping stations and at the customers to measure the use of water and this way identify possible leaks.

Identifying leaks by noise

Another focus area was to locate leaks directly on the pipe and it was solved by using a noise loggers and online hydraulic models enabling localisation of new leaks as they occurred.The noise logger is enhanced up to 15.000 times to be able to hear the slightest noise, caused by leaks, on the water line. The noise logger reports to the system when an increased noise level is detected in the area. This gives a repair team the chance to quickly locate and repair the leak. AVK products were in play here again, since AVK offers a complete solution a valve with an extension spindle and a street cover with room for an integrated noise logger was put in place.The project proved to be a great success. A vital reduction of the water loss was calling for an expandsion project to follow.

Complete, intelligent solutions

Leading companies within water supply – NIRAS, AVK, Grundfos, Schneider Electric, Kamstrup and Leif Koch – has formed a partnership to present complete intelligent solutions to assist parts of the world suffering from water shortage and water loss.

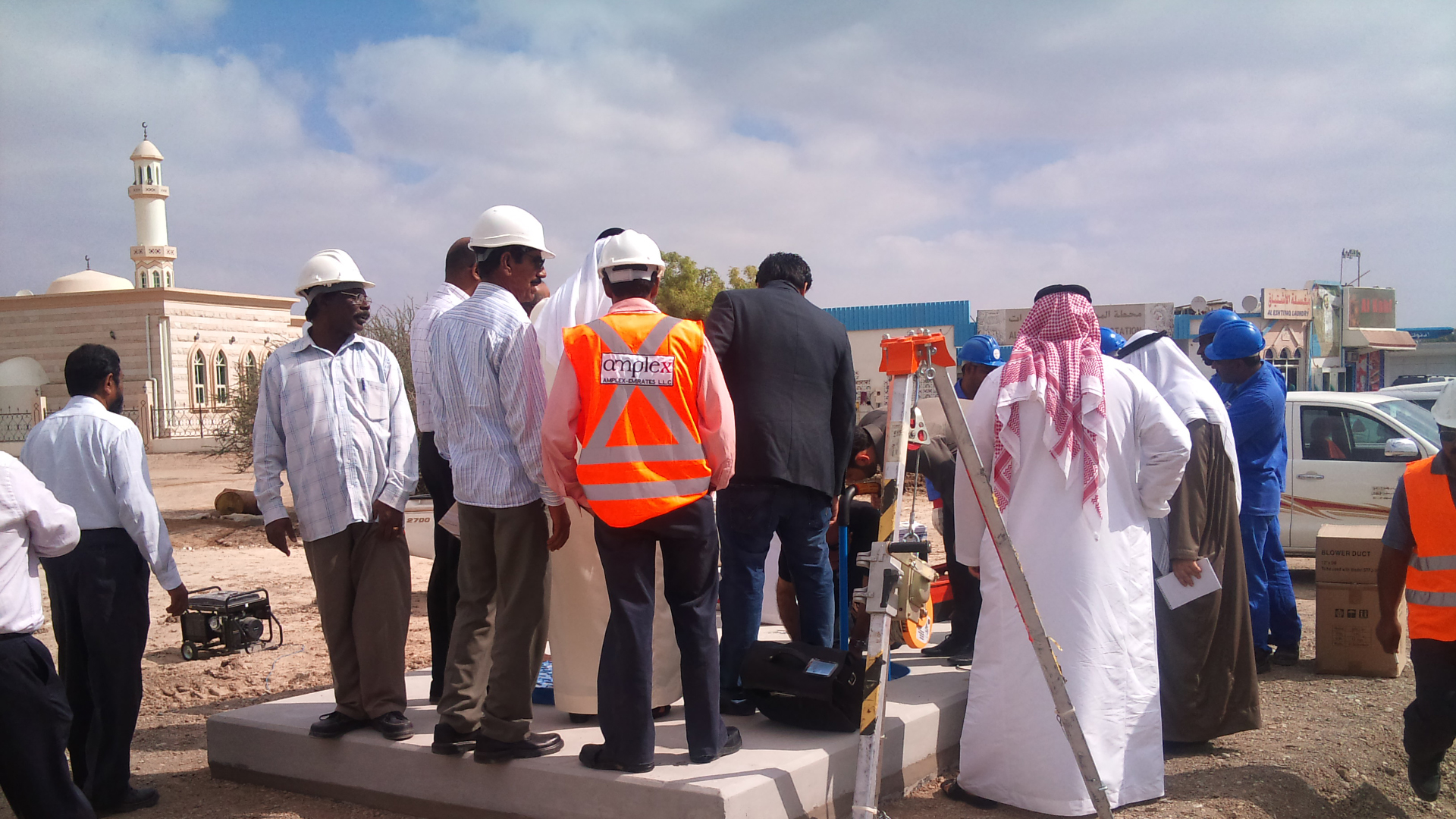

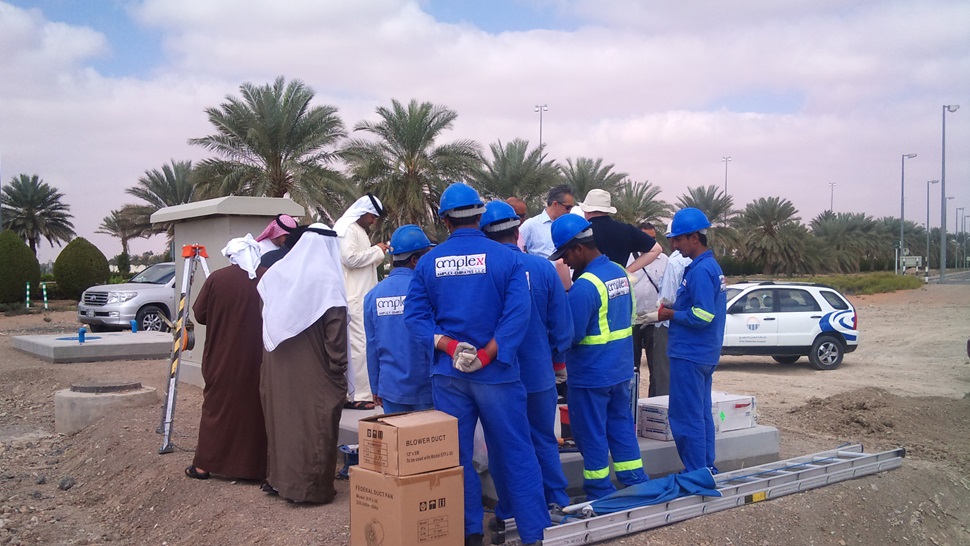

Construction work during water loss project in Abu Dhabi
